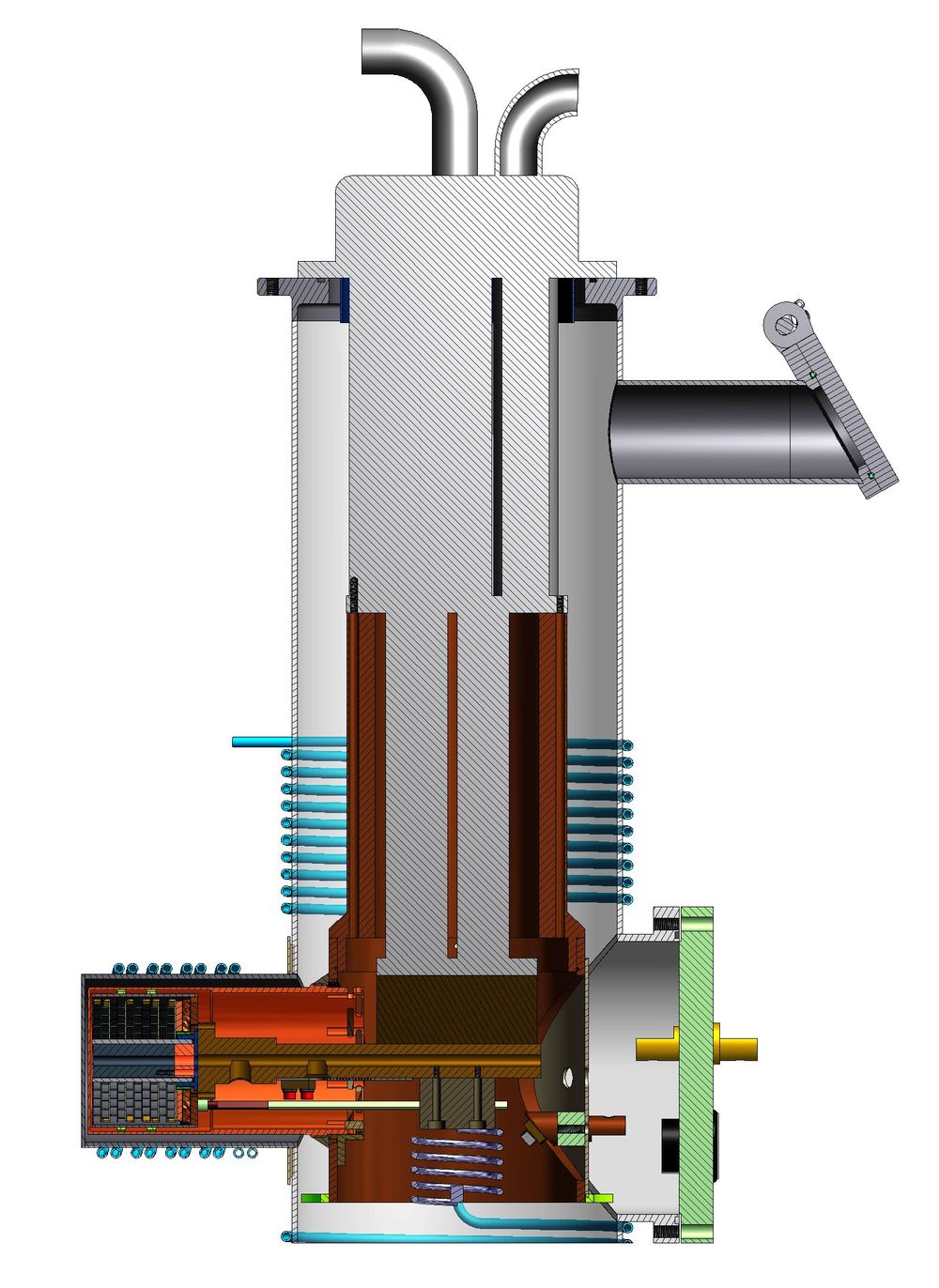

3D design for a cryogenical magnet cooler. |

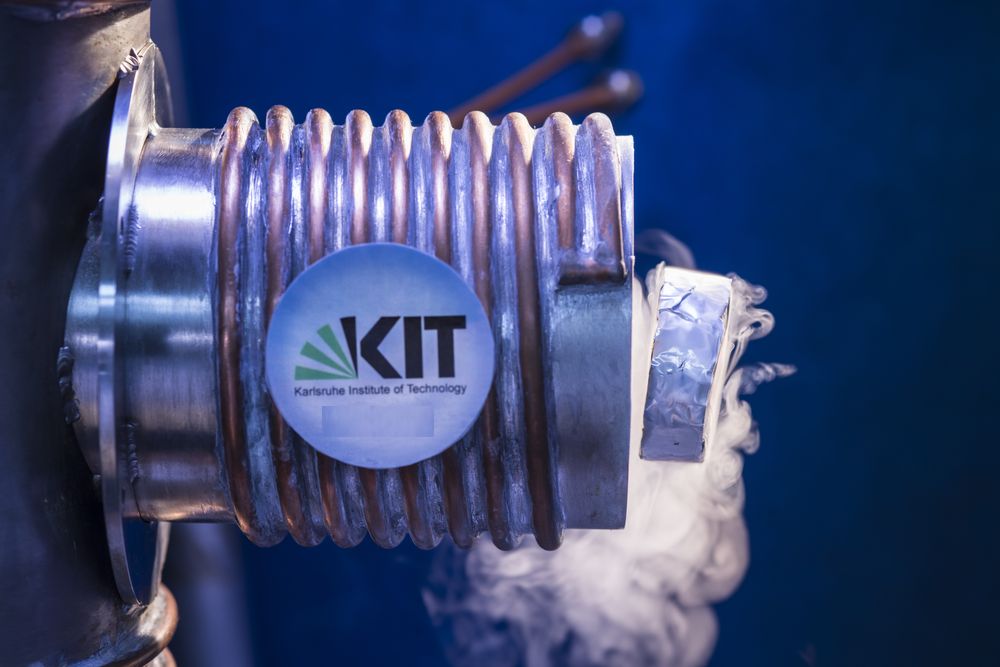

Coolhead with 2 Watts at liquide helium level.
Magnet with 2 Tesla at 4 Kelvin.
Applicated and designed for a research and develop department for test in interstellar physics and astronautics.

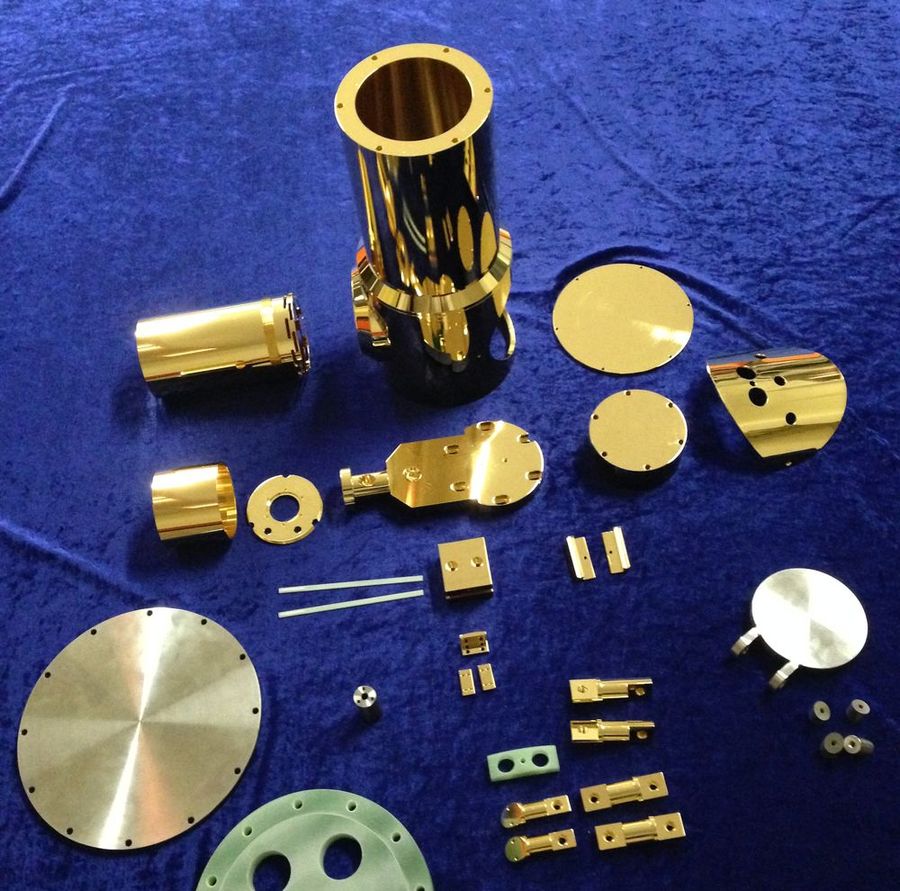

Real project and elements with gold coating.|
Additional design of test equipment.

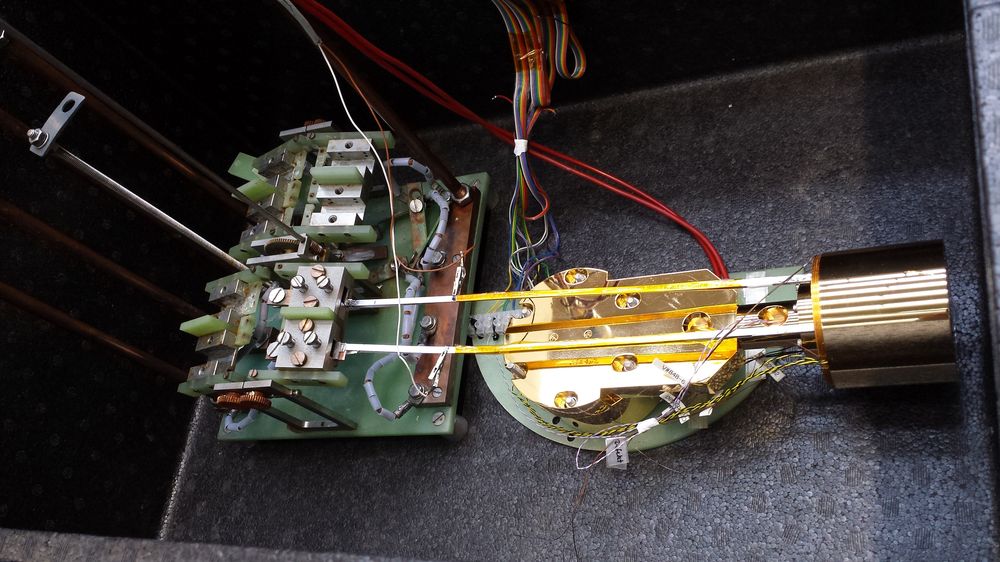

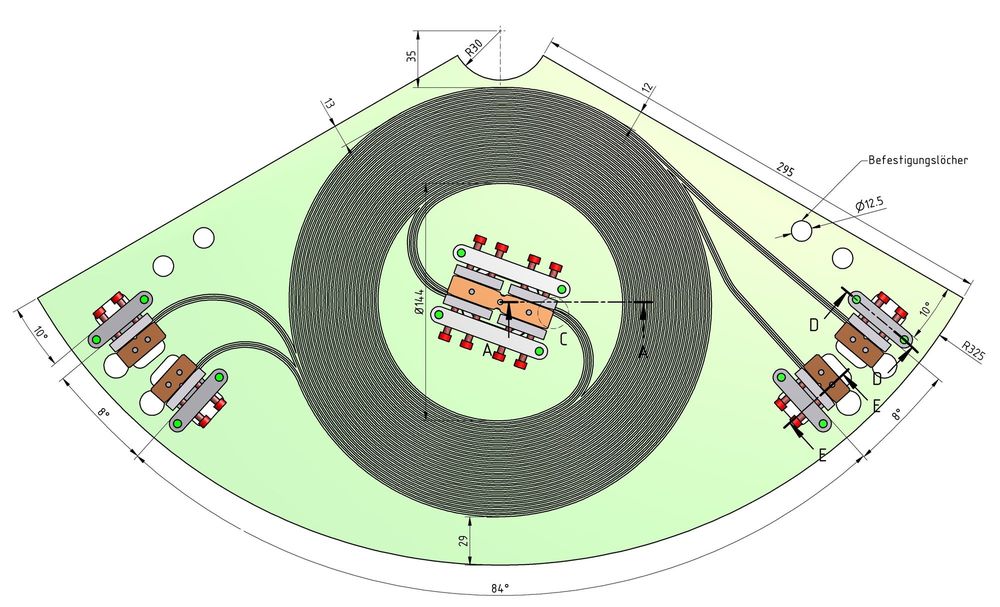

3D design for labor test facilities to analyze Lorentz force on super conductors.|

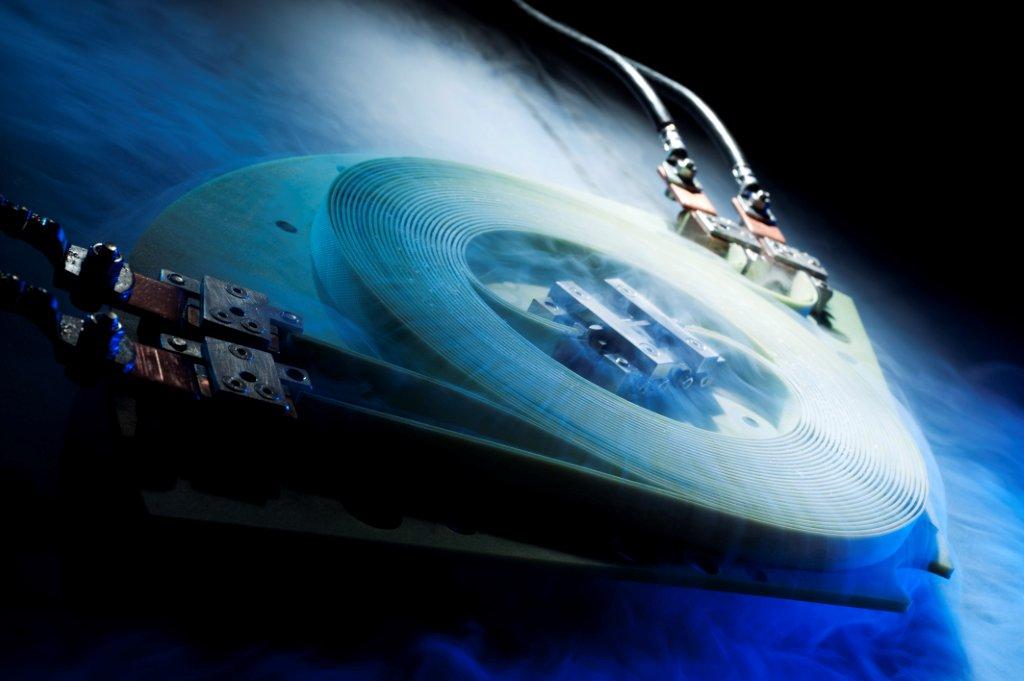

Analyze recooling time in liquid nitrogen.

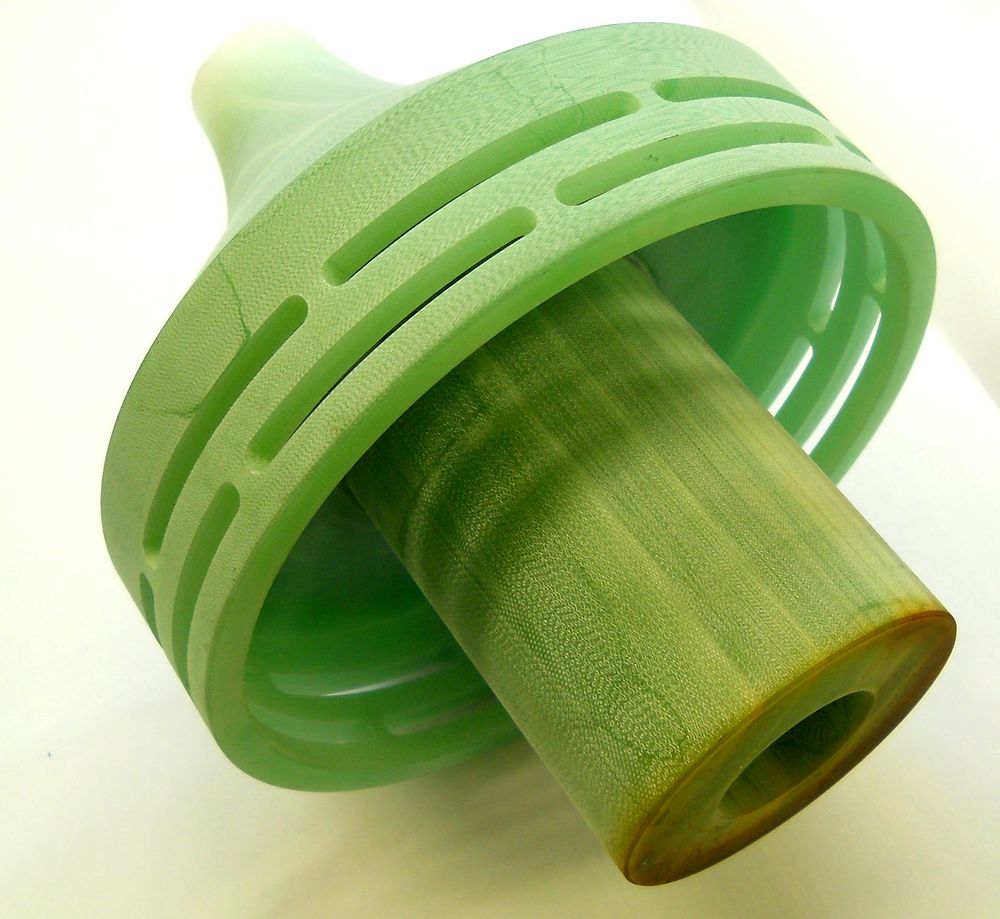

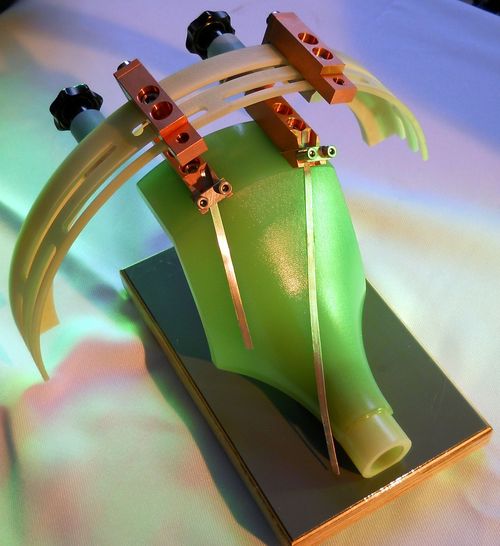

High voltage insulation parts with G10 material tested and manufactured.
Demonstrated in liquid nitrogen.
Jazzed up for exhibitions.

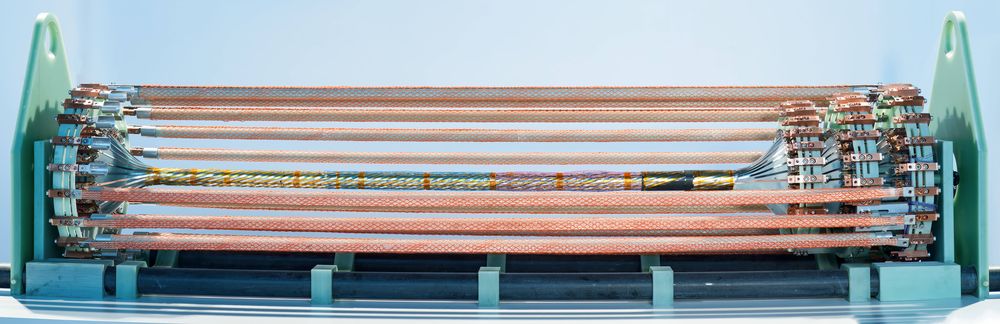

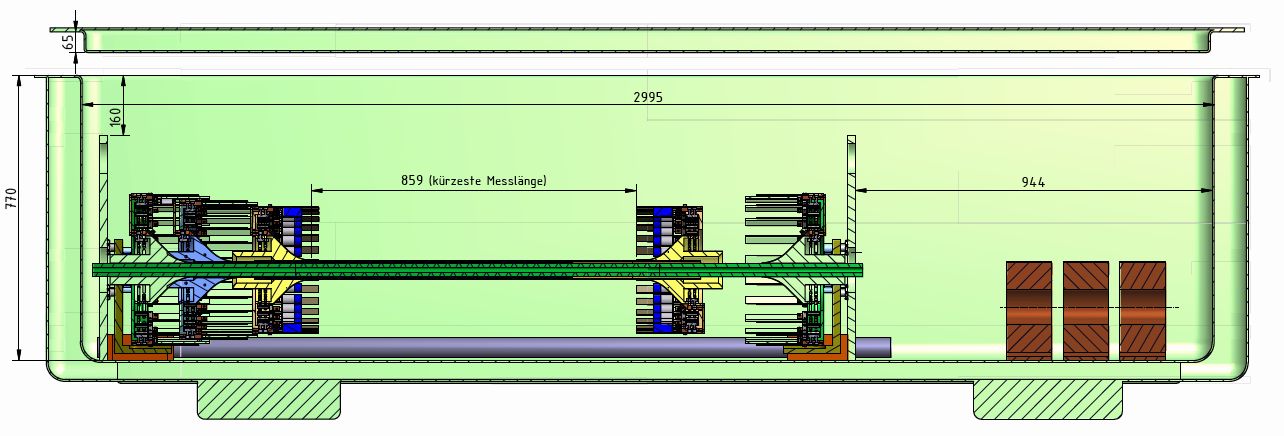

|Test facility for 3-phase super conducting cable. Tested in liquide nitrogen.|
Raw material combinations with stainless steel, G10 and copper in liquide nitrogen requires high performance according to the very different huge negative contraction.|

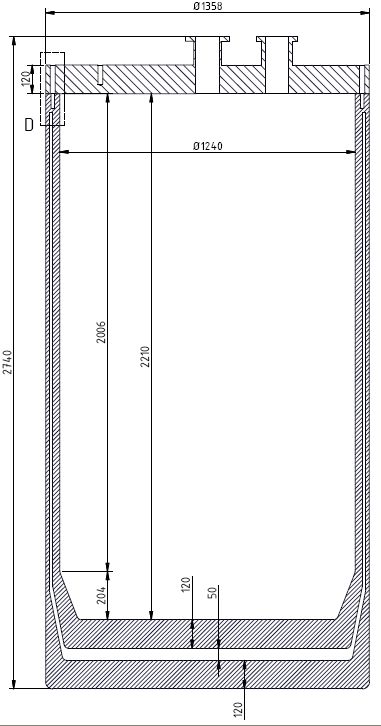

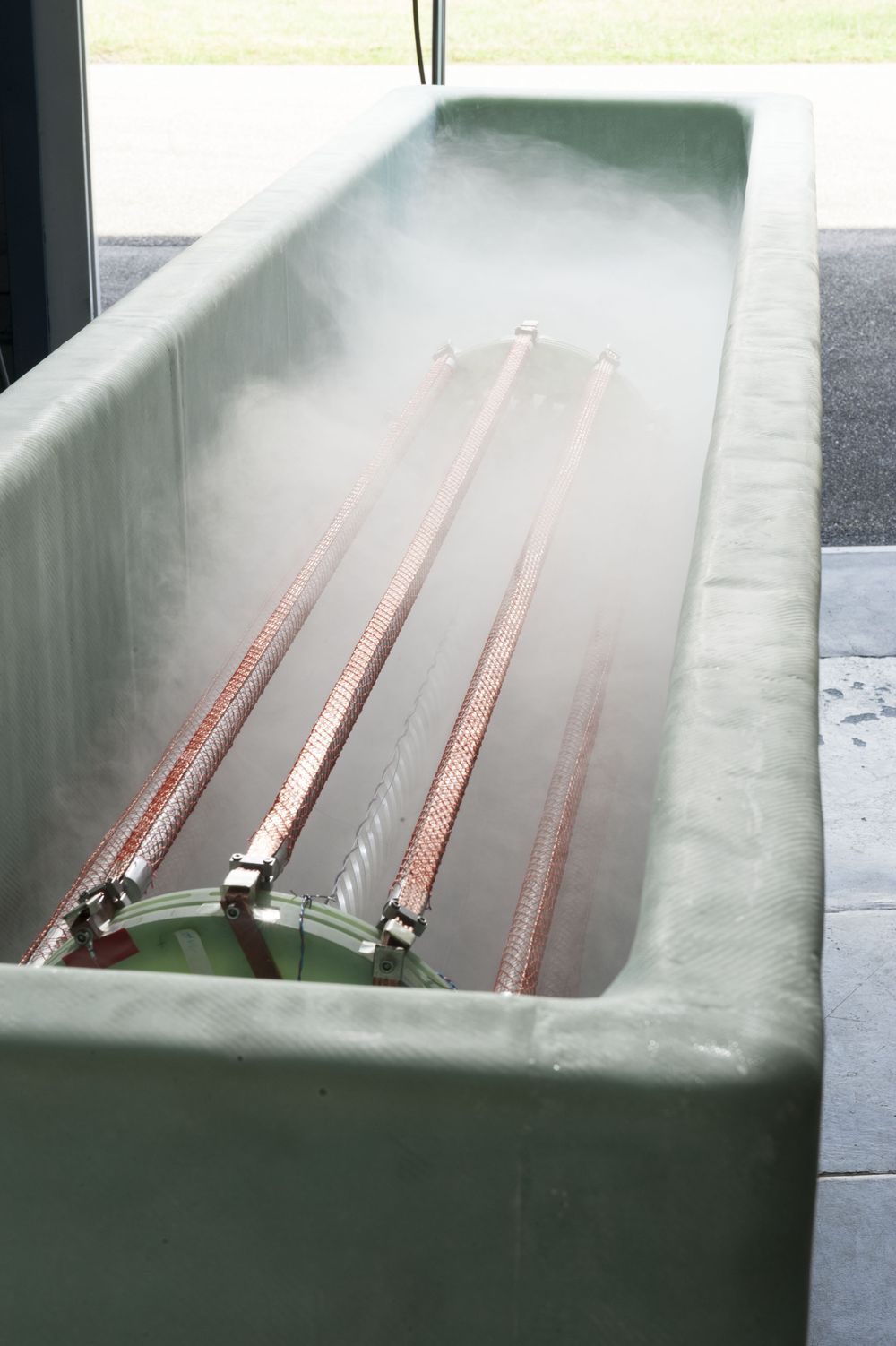

G10 tanks and bowls for liquide nitrogen bath tests.

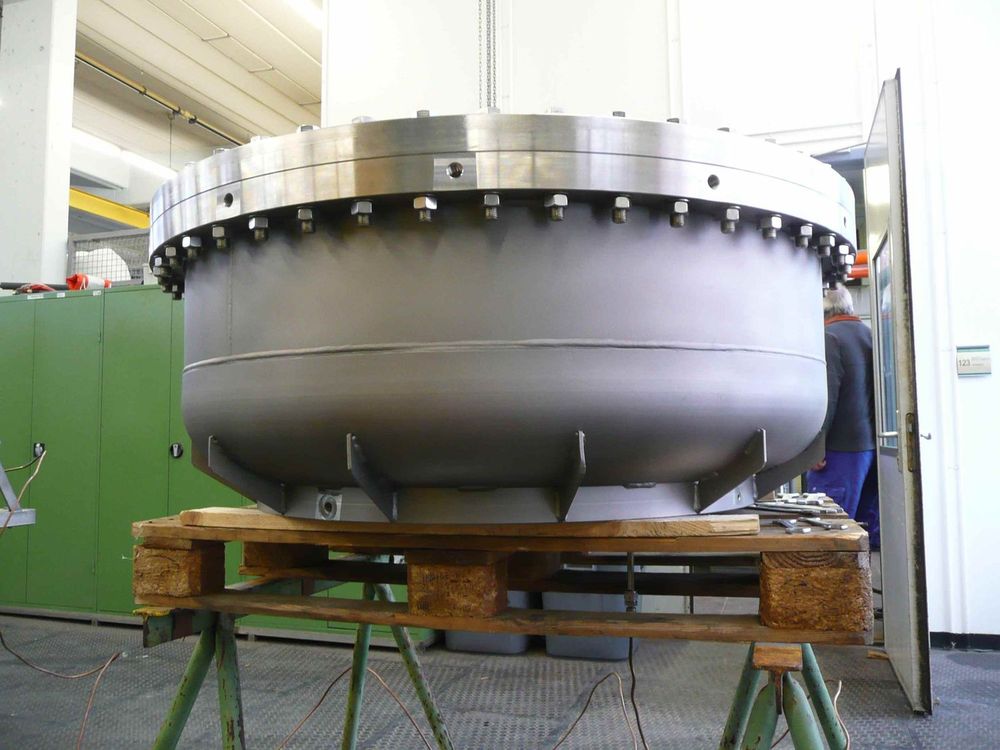

Ultra High Vacuum (UHV) vessels or pressure vessels.|
Also ASTM standard conversion to AD2000 with TÜV preliminary approval.
In stainless steel and in G10 as well.
Analysis with Finite element method (FEM).
